Humphrey Standard Features
• High quality PVC frame members
• Multi chamber design adds strength and maximizes thermal performance
• Flexible compression seals
• Reinforcing recommended on larger or multiple units
• Strong fusion welded corners
• Architecturally sculpted exterior design
• Energy efficient glazing options
Fixed Windows
Picture windows are made up of a sealed unit (panels of glass compressing a spacer bar to provide air space between) fixed into a vinyl extruded frame member, and held in place with a vinyl glazing stop. They are not operable!
Options:
– Slimline small picture frame
– High Profile Box Frame (Replicates the sash look of the casement window)
Solid Colour Options:
– White
– Beige
Laminated Colour Options:
– Black
– Brown
Custom Painted Colour Options:
Operating Hardware
Roto Hardware is a product innovator and market leader in window and door hardware technology. Humphrey is proud to offer hardware that is not only operationally easier, it provides greater security and improved testing that combined with impressive durability adds value to our window products.
Roto Corner Drive Locking System:
• Designed to take window air/water performance and security to higher levels.
• Combines energy saving and security advantages of European tilt + turn technology.
• Allows an additional locking point at the top of the window other hardwares don’t.
• Provides an integrated locking point positioned 3″ from the frame corner for superior air/structural performance.
Lock Handle:
• Patented “over design” travels 180 degrees and will not allow lock to be opened from outside reducing forced entries
• Multi-point locking handle
• Stainless steel bar
• Durable nylon keepers
Glass Options
Humphrey’s Standard– Super spacer warm edge technology spacerbar
– Bostik “EdgestikTM” Butyl back sealant
– 3mm, 4mm, 5mm glass depending on size
– Argon gas filled chambers
– Low – E Options Available

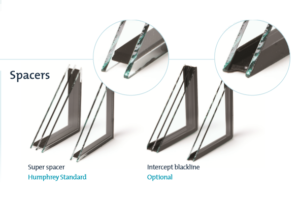

Spacers:
– Super spacer
– Intercept blackline ( Optional )
Glazing:
– Dual Glazed
– Triple Glazed
Interior Grills
Colours:
– White
– Beige
– Pewter
– Brass
– Brushed Brass
– Black
– Brushed Aluminum
– Chrome
*See Colour Charts & Sizing
Screen
Features:
– Architecturally contoured design
– Strong aluminum 3/4″ x 1/2″ profile c/w overlap lip
– Fiberglass mesh screen
– Easy use spring tension clasping system
– Durable nylon corners
– Colour option – Able to match interior colour options
To learn more contact us at (204) 633- 9200
